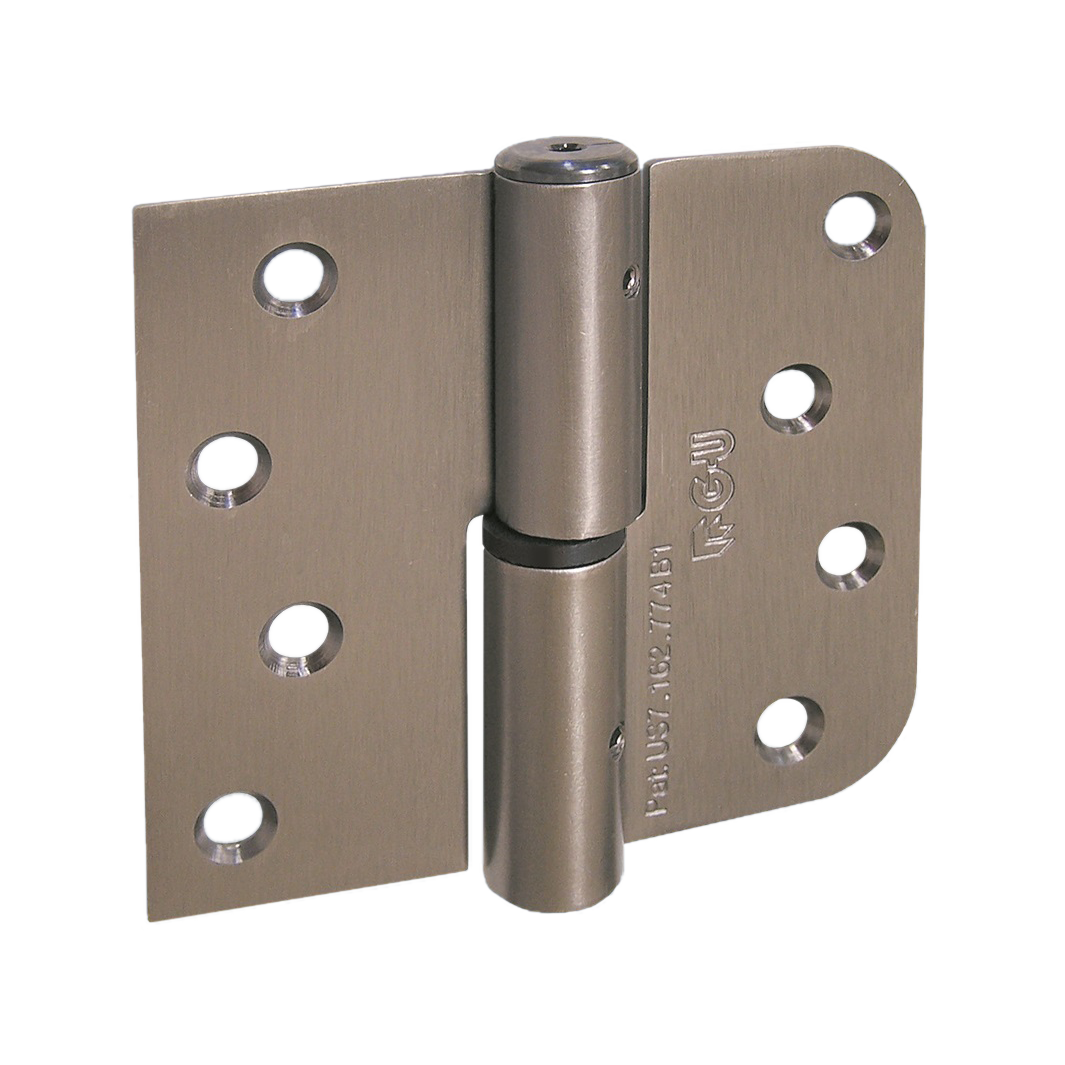

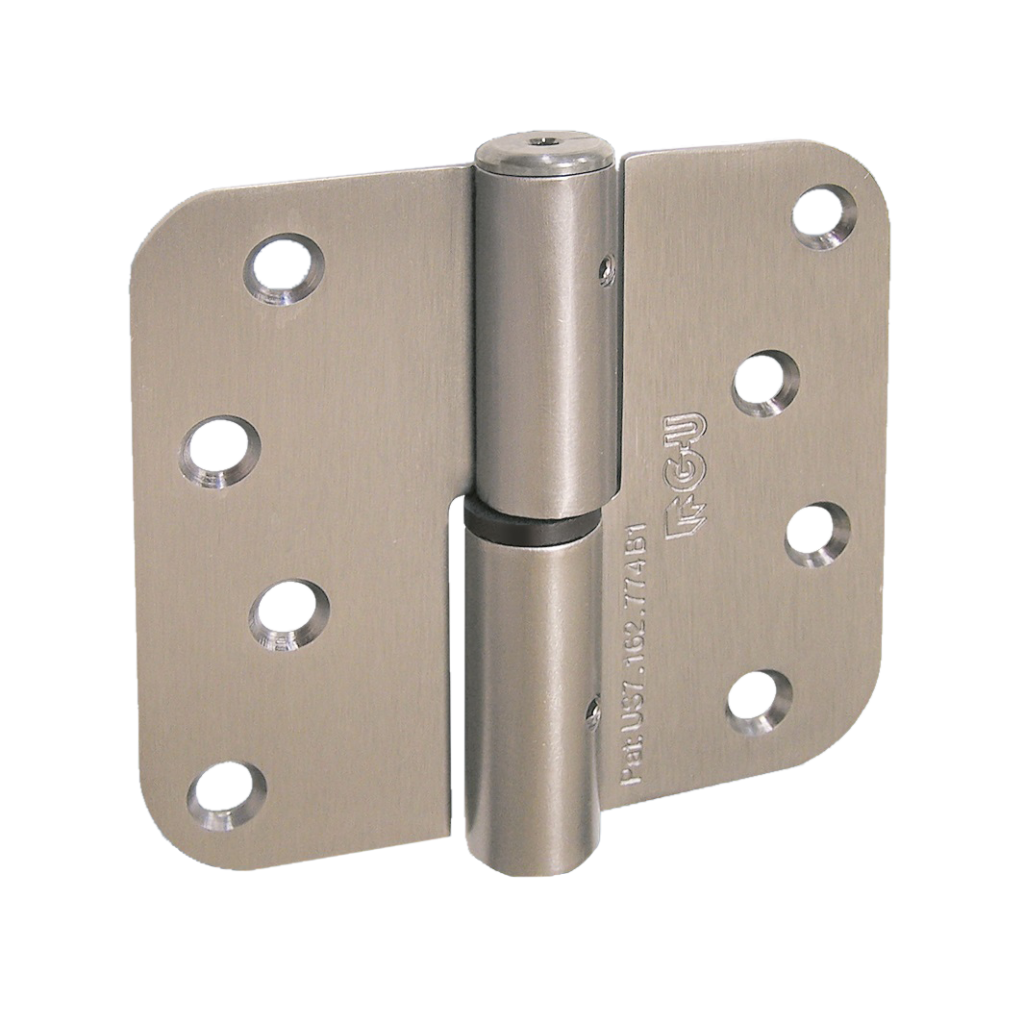

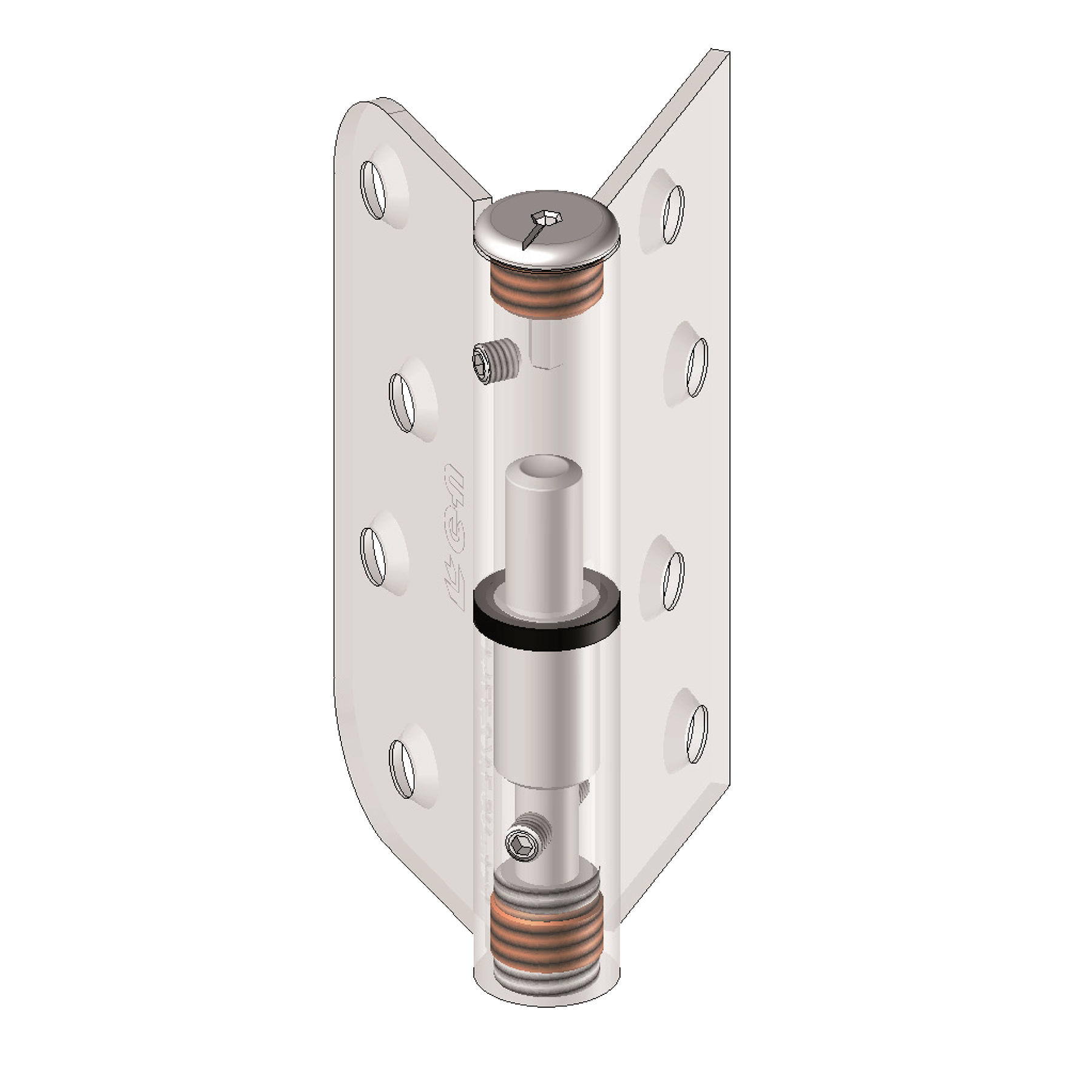

High-end 4″ x 4″ hinge that requires no special routing or preparation Provides an excellent solution for solving tricky field service problems due to its ability to be a drop in replacement for standard butt hinges. Three-way adjustments for increase or decrease weather seal pressure on the panel Door panel adjustment can be done with door in closed position eliminating any adjustment guesswork. No need for NRP due to unique barrel design.
- Made of 304 stainless steel
- Standard 4″ x 4″ Size
- Frame leaf with rounded corners 5/8″ radius
- Door leaf with square corners or rounded corners
Adjustable 3 ways
- Lateral ±2mm
- Depth ±2mm
- Height -2mm, +5mm
- For inswing or outswing doors
- N °10 x 5/8″, 3/4″ and 1 1/4″ stainless steel flat head screws with Quadrex socket are included
- Black adjustment bushings are included
- Allen keys are included
- Tested at 125lbs according to BHMA/ANSI A156.1 Grade 3
